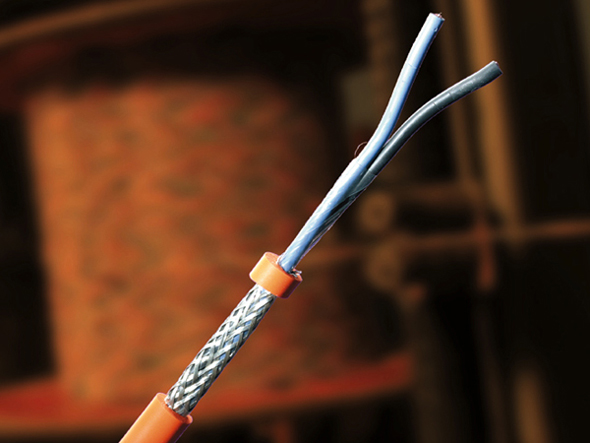

Fire Alarm Cable
Application: Wiring of fire alarms, fire protective circuits, burglar alarms, smoke alarms, and voice communications.
Conductor Material: Solid bare copper
Insulation Material: PVC
Laying-up: Units
Drain Wire: Solid bare copper
Shield: Overall Al/Polyester foil
Nylon Rip Cord: 150D
Sheath Material: PVC/LSF/PE
Sheath Color: As your request
Shape: Circular in cross-section
Voltage Rating: 300/500 voltage
Temperature Rating:75℃
Microphone Cable
Application: Multi-conductor-audio/sound, control.& Instrumentation Cables.
Conductor Material:Tinned annealed high conductivity copper wire strands
Insulation Material:PVC/PE/LSOH
Laying-up: Units
Screen: Braided or lapped copper wire
Shield: Overall Al/Polyester foil
Sheath Material: PVC/LSOH
Sheath Color: As your request
Shape: Circular in cross-section
Voltage Rating: 300/500 voltage
Temperature Rating:75℃
Speaker Cable
Application:Power limited circuit, remote control, signaling, security systems, communications, intercom/P.A. systems, sound/audio, and nurse call.
Conductor Material: Bare copper wire strands
Insulation Material:PE/PVC
Laying-up: Units
Drain Wire: Solid bare copper
Shield: Overall Al/Polyester foil shield
Nylon Rip Cord: 150D
Sheath Material: PVC/LSF/PE
Sheath Color: As your request
Shape: Circular in cross-section
Voltage Rating: 300/500 voltage
Temperature Rating:75℃
